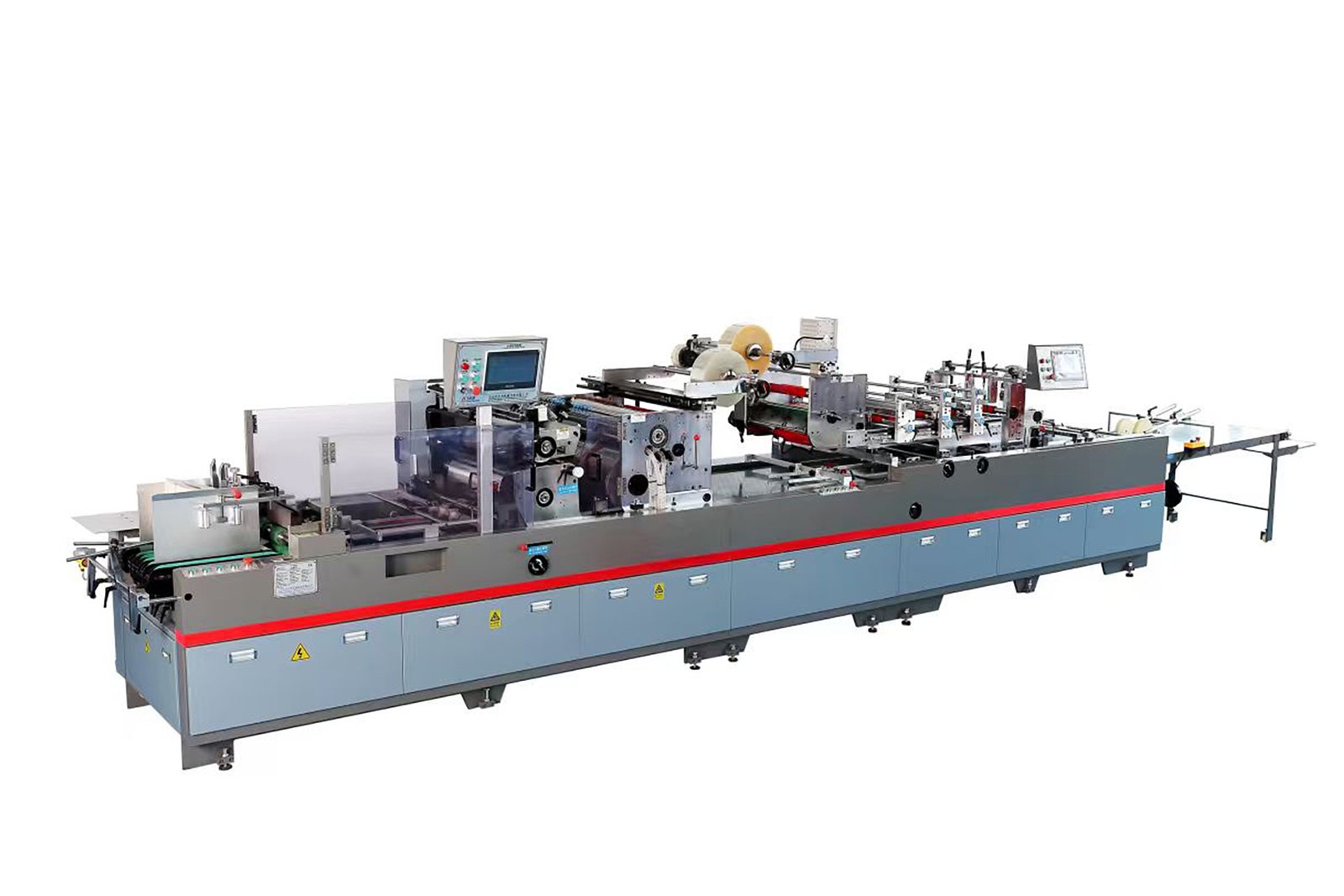

SAGLIN-VCUT · 2 CONFIGURATIONS
Dedicated V-cut
3D Window Carton Machine
The dedicated platform for premium 3D window cartons — cosmetic, fragrance, and gift box production. V-cut + creasing + optional embossing and hole punching, fully integrated on a single high-precision line.
Why V-cut is the premium window patching play.
3D windows. Higher margins. Less competition.
The SAGLIN-VCUT series is the flagship of the SAGLIN window patching platform — a dedicated V-cut machine for converters serving the premium carton segment. Where flat patching produces a single 2D window, V-cut creates a folded 3D window that wraps around the product, dramatically increasing perceived value and shelf presence. This is the format used by global cosmetic, fragrance, and luxury gift brands.
“Flat-patched windows are commodity. V-cut 3D windows are premium. The margin gap between the two is the reason this is where converters move when they want to escape race-to-the-bottom pricing.”
The VCUT series is engineered exclusively for V-cut work — no compromise to share architecture with flat patching. Three independent servo motors control film feed, V-cut die positioning, and creasing wheel timing, delivering ±0.5 mm registration on cartons up to 750×1050 mm. The optional heater roller extends film compatibility to 0.40 mm thick BOPP and PET — the heavier films required for premium gift packaging.
Every VCUT machine ships with electrical and pneumatic specifications adapted for the Russian market (380V / 50Hz, EAC support). Installation, commissioning, and operator training are handled by our partner HD RUS LLC in the Moscow region.
Why VCUT wins
- Dedicated V-cut architecture — no compromise from flat-patching integration
- 3 independent servo motors for film, V-cut die, and creasing wheel
- ±0.5 mm V-cut positioning accuracy at production speed
- Long-life V-cut tool — engineered for high-volume production runs
- Heater roller option for 0.25–0.40 mm thick film handling
- Optional embossing, hole punching, and tuck-in flap creasing
VCUT800H vs VCUT1050H.
Verified specifications. Choose by your widest target carton — VCUT800H covers most cosmetic and fragrance formats up to 750×800 mm, VCUT1050H extends coverage to 750×1050 mm for large gift boxes and oversized carton work.
| Specification | ★ FlagshipStandardVCUT800H | Large FormatVCUT1050H |
|---|---|---|
| Sheet Size Range | ||
| Max sheet size (mm) | 750 × 800 | 750 × 1050 |
| Min sheet size (mm) | 180 × 150 | 180 × 180 |
| V-cut Film Size Range | ||
| Max V-cut film (mm) | 300 × 300 | 350 × 500 |
| Min V-cut film (mm) | 70 × 30 | 70 × 30 |
| Material Range | ||
| Paper thickness (gsm) | 250 – 1500 | 250 – 1500 |
| V-cut film thickness (mm) | 0.10 – 0.25 | 0.10 – 0.25 |
| Film thickness (heater opt.) | 0.25 – 0.40 | 0.25 – 0.40 |
| Performance | ||
| V-cut speed (pcs/h) | 7000 | 7000 |
| V-cut positioning accuracy | ± 0.5 mm | ± 0.5 mm |
| Power & Footprint | ||
| Machine power (kW) | 5.5 / 17 | 7.5 / 19 |
| Machine weight (kg) | 3500 | 4000 |
| Outer dimensions (mm) | 7288 × 1365 × 1850 | 8000 × 1758 × 1850 |
| Power supply | AC 380V / 50Hz / 3-phase (adaptable to local grid) | |
| Standard & Optional Functions | ||
| V-cut die (standard) | Long-life V-cut tool | Long-life V-cut tool |
| Creasing wheel (standard) | Yes | Yes |
| Heater roller (optional) | Available | Available |
| Embossing die (optional) | Available | Available |
| Hole punching (optional) | Available | Available |
| Print register camera (optional) | Available | Available |
| Tuck-in flap V-cut + cross creasing | Available | Available |
The 7000 pcs/h V-cut throughput is sustained at standard operating conditions. Speed varies with carton size, film thickness, and number of V-cut dies in operation (single / two / three V-cut configurations are all supported). Specifications subject to continuous improvement.
3D windows command 30–50% higher carton pricing.
Flat-patched 2D windows are commoditised — every Chinese window patching machine produces them, and converter margins on flat-window cartons have compressed steadily over the last decade. V-cut 3D windows are a different market: the folded film wraps around the product, creating depth, shadow, and shelf presence that flat windows cannot match.
This is why cosmetic, fragrance, and premium gift brands specify V-cut almost exclusively. The capital cost difference between a flat patching line and a V-cut line is recovered within 12–18 months on the margin uplift alone — and the customer base for V-cut work is structurally smaller, less price-sensitive, and more loyal to capable suppliers.
The VCUT series is the dedicated V-cut platform — engineered without flat-patching compromise. Three independent servos, ±0.5 mm precision, and optional embossing or hole-punching turn standard cartons into branded 3D packaging.
- Cosmetic and skincare premium cartons (50–200 ml product range)
- Fragrance and perfume gift boxes (windowed display packaging)
- Luxury gift boxes (chocolate, wine, watch, jewellery presentation)
- Premium retail packaging requiring 3D shelf differentiation
V-cut Positioning Accuracy
The ±0.5 mm V-cut positioning accuracy across the VCUT series is the registration baseline that converts a generic window patching line into a premium-carton production platform.
Eight features for premium V-cut production.
The VCUT series is engineered exclusively for V-cut work. Here is what differentiates a dedicated V-cut platform from a flat patching machine retrofitted with a V-cut tool.
3 Independent Servo Motors
Separate servo control for film feed, V-cut die positioning, and creasing wheel timing. Each axis tuned independently for the carton size and film thickness in production.
±0.5 mm V-cut Accuracy
±0.5 mm V-cut positioning at full production speed. This is the registration baseline that converts a generic V-cut machine into a premium-carton production platform.
Long-Life V-cut Tool
Hardened V-cut die engineered for high-volume production. Tool life rated for hundreds of thousands of cuts before regrind — critical for cosmetic and fragrance converters running long campaigns.
Optional Heater Roller
Heat-controlled roller for film thicknesses 0.25–0.40 mm. Required for heavy BOPP and PET films used in premium luxury and wine gift packaging.
Single / Dual / Triple V-cut
Configurable for one, two, or three V-cut windows per carton. The most premium cosmetic and fragrance cartons specify triple V-cut for full-product visibility on all visible faces.
Tuck-in Flap V-cut + Creasing
Optional cross-creasing wheel for V-cut tuck-in flaps. Required for cartons where the window wraps onto the tuck flap (cosmetic compact, jewellery presentation boxes).
Optional Letter / Logo Embossing
Factory-fit embossing die for branded letter or logo embossing directly on the window film. Used for premium brand identification on cosmetic and fragrance windows.
Optional Hole Punching
Factory-fit punching die for decorative holes in the window film — used for hanging-tab packaging and breathable window applications (skincare, gourmet food premium).
Where the VCUT performs.
The VCUT series is the dedicated platform for premium carton work where the window is the brand statement, not just functional product visibility.
Premium Skincare Cartons
V-cut 3D windows for premium serum, cream, and skincare cartons. Folded film creates the depth and shelf presence required for prestige cosmetic shelving — the highest-margin segment in window patching.
Perfume & Eau de Toilette
Fragrance flacon presentation boxes with V-cut windows showing the bottle through dimensional film. Optional embossing for brand identification — the standard format for global fragrance houses.
Wine, Watch, Jewellery Boxes
Premium gift box production for wine, watch, and jewellery presentation. Heater roller option enables the heavy 0.30–0.40 mm BOPP and PET films required for luxury gift category packaging.
Chocolate & Gift Confectionery
High-end chocolate gift boxes with windowed product display. V-cut creates the dimensional window that differentiates premium confectionery from commodity flat-window packaging.
Built with global-brand components.
The VCUT series uses production-grade components selected for precision and longevity in premium-carton applications. No compromise to lower the price point on a flagship machine.
Questions before signing the contract.
Which model should I start with — VCUT800H or VCUT1050H?
What is the difference between V-cut and flat window patching?
Can the VCUT handle thick BOPP and PET films?
How many V-cut windows can a single carton have?
What is the lead time and payment structure?
Is the machine EAC certified for the Russian market?
Can I add embossing or hole punching later?
Do you also offer flat patching and hybrid (flat + V-cut) machines?
Request a quote for the SAGLIN-VCUT series.
Tell us your target carton size, film thickness, and whether you need embossing, hole punching, or the heater roller. We respond within 24 hours with a detailed quotation, line layout proposal, and EAC documentation plan.
