Auto-Precision
Cardboard Laminator.
Servo-driven precision for corrugated and cardboard lamination — engineered for premium box converters and high-volume packaging factories.
Built for premium cardboard converters.

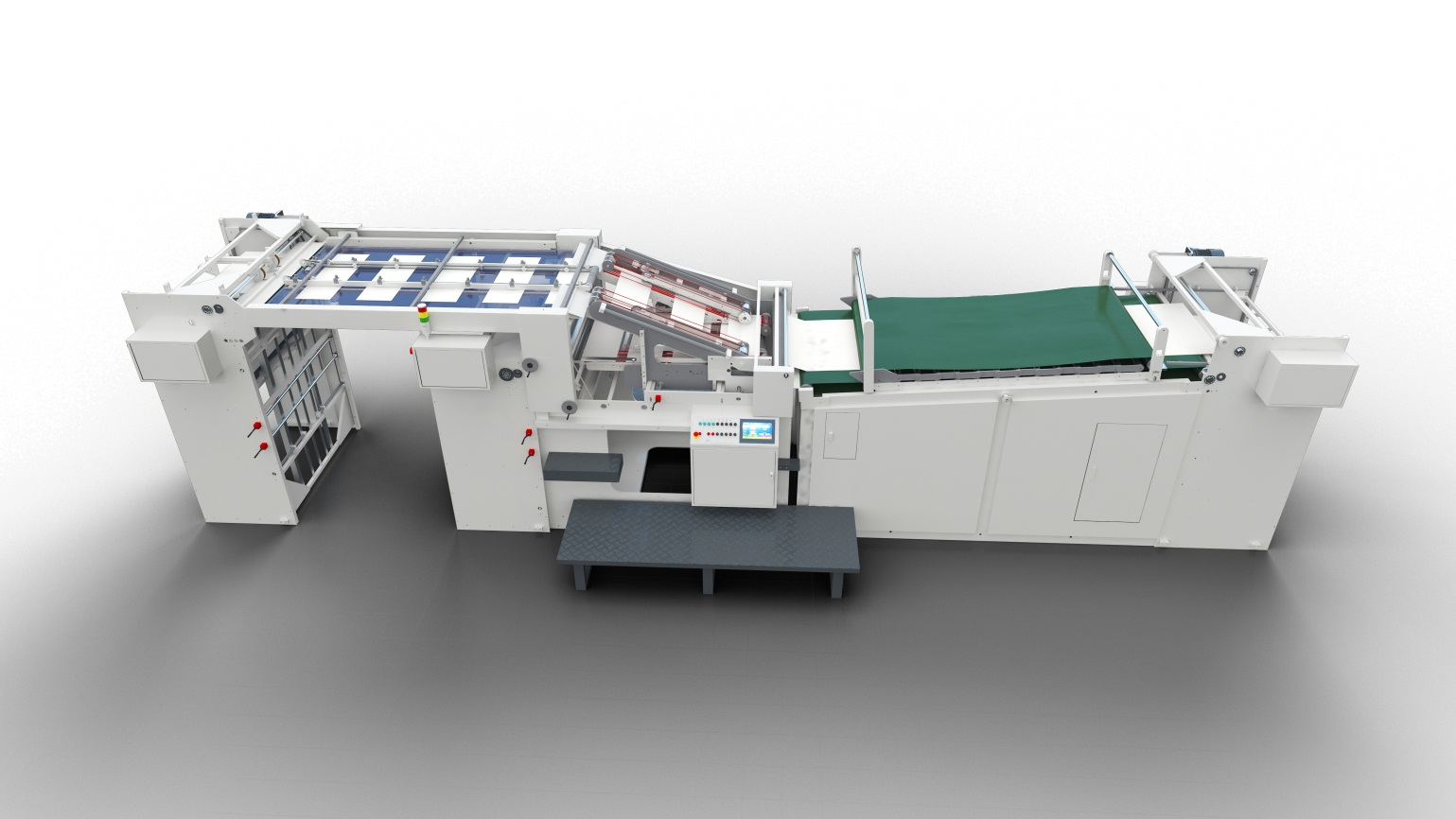

The SAGLIN-DX-1207 is a fully automatic cardboard-to-cardboard laminator — built for converters whose finished product is judged by registration accuracy and surface finish. It handles 100–800 g/m² art paper on top and 180–1800 g/m² cardboard underneath, with lamination held at ±0.5 mm precision on standard smooth board.
“From front-top suction feeding to dynamic alignment with synchronized lamination — the DX-1207 is engineered to deliver sub-millimeter precision shift after shift, without operator-dependent variation.”
What sets the DX-1207 apart is the combination of dynamic alignment with synchronized lamination, three-sensor automatic glue level control, and a planet transmission with timer-belt drive throughout. Glue coating goes as thin as 0.02 mm with a side glue stopper plus recirculation system that prevents overflow at full speed.
The machine ships with all electrical and pneumatic specifications adapted for the Russian and CIS markets (220/380V three-phase 50Hz, EAC certification support), and can be installed and commissioned by our partner HD RUS LLC in Moscow within 10–14 days of arrival on site.
Why operators choose DX-1207
- ±0.5 mm dynamic registration on standard smooth paperboard
- Front-top suction feeders on both top and bottom — no readjustment between formats
- 0.02 mm minimum glue coating thickness with three-sensor auto level control
- Side glue stopper + glue recirculation system — clean operation at full speed
- Multi-layer pressing conveyor with motorized speed and length adjustment
- Planet transmission, timer-belt drive — service-free, low-noise operation
Complete data sheet.
Verified specifications for the SAGLIN-DX-1207 main unit. Auxiliary equipment (lift tables, automatic stacker variants) is documented separately on request.
Lamination precision and effective speed depend on paper quality, glue formulation, and operator experience. At 150 sheets/min on calibrated stock, ±0.5 mm registration is repeatedly achievable. Specifications subject to change without notice as part of continuous improvement.
Four widths, one platform.
The DX-1207 is part of SAGLIN’s automatic cardboard laminator family. All four models share the same feeding, gluing, pressing and stacking architecture — choose the working width and maximum format that match your products.
| Specification | SAGLIN-DX-800 | SAGLIN-DX-1207 | SAGLIN-DX-1210 | SAGLIN-DX-1410 |
|---|---|---|---|---|
| Max sheet (W×L) | 800 × 700 mm | 1200 × 720 mm | 1200 × 1000 mm | 1410 × 1000 mm |
| Min sheet (W×L) | 297 × 230 mm | 470 × 270 mm | 470 × 270 mm | 450 × 450 mm |
| Top sheet | 100–800 g/m² | 100–800 g/m² | 100–800 g/m² | 100–800 g/m² |
| Bottom sheet | 180–1800 g/m² | 180–1800 g/m² | 180–1800 g/m² | 180–1800 g/m² |
| Max speed | 150 sheets/min | 150 sheets/min | 105 sheets/min | 105 sheets/min |
| Precision | ±0.5 mm | ±0.5 mm | ±0.5 mm | ±0.5 mm |
| Machine weight | 6,000 kg | 7,000 kg | 7,000 kg | 7,500 kg |
| Dimensions (L×W×H) | 8900 × 2140 × 2180 mm | 8900 × 2140 × 2180 mm | 8900 × 2470 × 2180 mm | 10250 × 2770 × 2180 mm |
| Power supply | 380V 3-ph 50Hz · 16 kW | 380V 3-ph 50Hz · 16 kW | 380V 3-ph 50Hz · 16 kW | 380V 3-ph 50Hz · 16 kW |
All models share a 3 × 12 m operation footprint and CE certification. EAC support and a Russian-language HMI are available across the full range through our partner HD RUS LLC. Not sure which width fits your run sizes? Send us your typical sheet formats and we’ll recommend the right model.
Eight engineered systems.
From feeder intake through stacker output, every subsystem on the DX-1207 is engineered for sub-millimeter consistency at 150 sheets/min — no operator-dependent variation.
Dynamic Registration ±0.5 mm
Synchronized laminating with front and side stoppers. Holds ±0.5 mm precision on standard smooth paperboard — sharper than typical flute lamination, suitable for premium box converters.
Front-Top Suction Feeders
Both top and bottom feeders use front-top leading-edge suction with E-type holding plates. Stable at high speed, no format readjustment between sheet sizes, fast paper changeover.
0.02 mm Glue Coating
Minimum 0.02 mm coating thickness, three sensors auto-regulate glue level. Glue-roller precision under 0.01 mm — consistent film, no waste, repeatable bond strength batch after batch.
Side Glue Stopper + Recirculation
Delicate side glue stopper plus a glue re-circulation loop prevents overflow at full speed and keeps the workspace clean. Paper releaser allows easy roller cleaning and calibration.
Planet Transmission, Timer-Belt Drive
State-of-the-art planet transmission distributes power evenly across the line. Whole equipment runs on timer belts — service-free operation, low noise, high efficiency.
Multi-Layer Pressing Conveyor
Motorized adjustment of revolving speed and pressing length. Multi-layer presses laminated paper while extra rollers apply repeated heavy pressure for smoother, flatter finished sheets.
Vibrant-Loose Automatic Stacker
Loosens laminated sheets cleanly into neat stacks. E-type stacking plate plus high-speed elevator pulls finished products out fast — minimal operator handling, ready for downstream cutting or die-cutting.
Three-Channel Feedback Control
Man-machine interface, voice alarm, and lamp-indicator PLC — three independent feedback channels report operation status, faults, and maintenance logs in parallel. Operators see issues before they cascade.
Where the DX-1207 is at work.
Designed for converters whose finished product is judged by registration and surface finish. Three application profiles where the machine pays back fastest.
Gift Boxes & Display Packaging
Hang-tags, display cards, gift boxes, cosmetics and luxury packaging. ±0.5 mm precision means lamination runs directly into die-cutting without trimming losses — critical for high-end shelf appearance.
Hard-Cover Binding & Albums
Photo albums, hardcover books, board-book children’s titles, puzzles. Multi-board lamination at production speed without registration drift, handling top sheets up to 800 g/m² and boards up to 1800 g/m².
Cushioning Pads & Material Boards
Material pads, sun shields, inner linings of piece goods, product demonstration boards. Tough multi-layer laminates produced at 150 sheets/min — for industrial converters, not just packaging.
The DX-1207 is the heart of our Premium Cardboard Line.
Combine with a flip-flop stacker, pile turner, and optional film-laminating, UV/varnishing, or window-patching modules — a turnkey investment configured to your spec, with typical 12–24 month payback for premium converters.
Built with components you trust.
Every DX-1207 ships with the same global-brand component baseline — no compromise on critical subsystems to lower the price point.
Questions buyers ask before signing.
What’s the realistic lamination precision in production?
What’s the realistic production rate over a shift?
What paper weight range can the machine handle?
Is the machine EAC certified for Russia?
How much floor space and power do we need?
Which model in the range should I choose?
