Film laminators built
for offset and digital printers.
Two complete product lines covering water-based, thermal, and pre-glue coated film lamination — from entry-level converters to premium printers running BOPP, OPP-Matte, MPET, and PVC films at production speeds up to 80 m/min.
Two complete lines, one technology family.
The E series targets growing converters who need reliable mid-range performance. The L series — our Leader line — is engineered for premium printers demanding the highest end of post-press lamination quality.

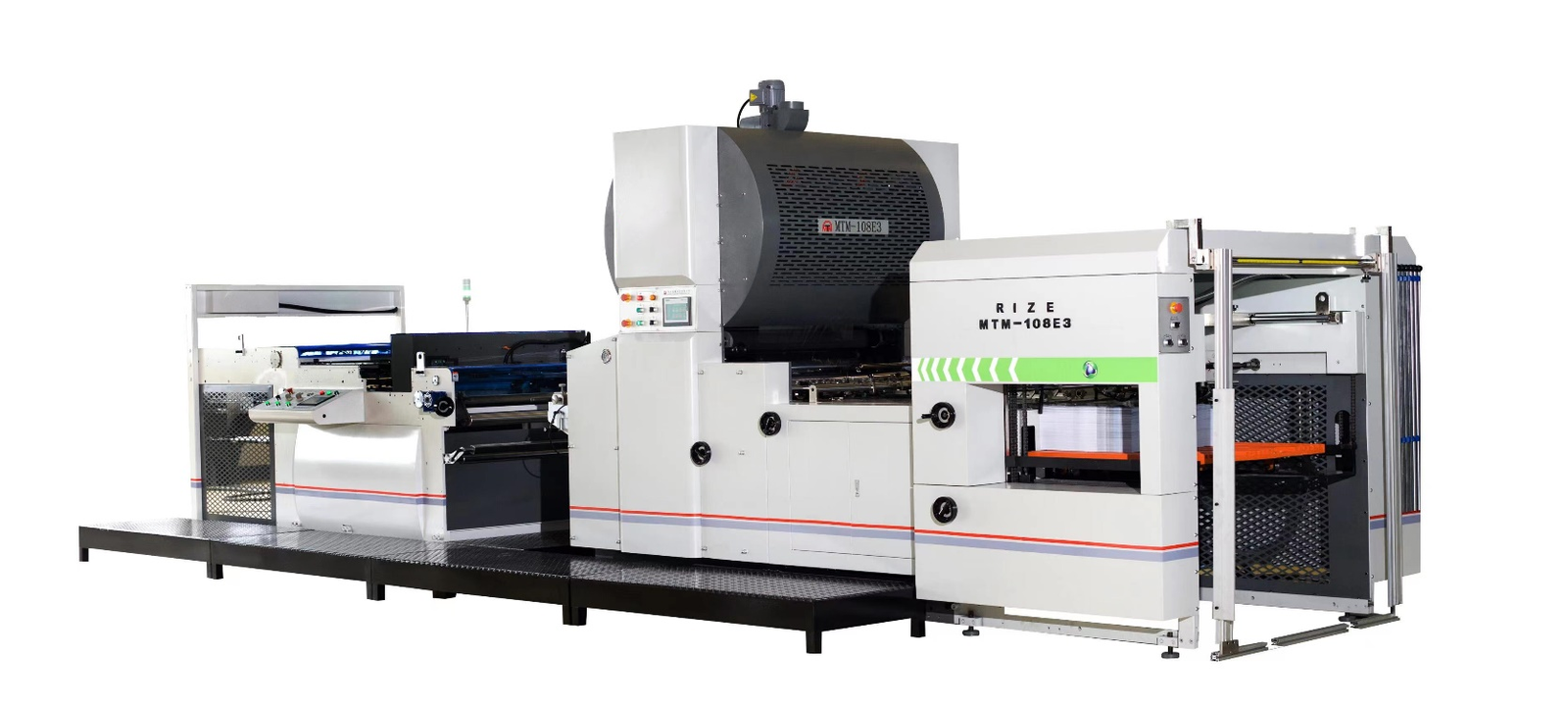

MTM-E — Multi-Functional High-Speed Series
Five proven configurations spanning 1080 mm and 1300 mm working widths. Servo-controlled feeding, electromagnetic thermal drying, and chain-knife or hot-knife cutting options.
- Working width 1080–1300 mm, sheet length up to 1650 mm
- Max speed 80 m/min on calibrated stock
- Paper 150–500 gsm, film 10–25 μm
- Chain knife (standard) · Disc knife (E3) · Hot knife (E4) options
- Siemens PLC + HMI · Schneider switchgear · Becker vacuum
MTM-L — Leader Premium Series
Our flagship film laminator line, built for printers serving luxury cosmetics, premium publications, and high-end commercial print. Available with optional Steinemann (Switzerland) hot-knife separation.
- Working width 1080–1300 mm, sheet length up to 1650 mm
- Premium feeder geometry for sheet sizes down to 350×350 mm
- Paper 100–500 gsm, film 6–25 μm
- Optional Steinemann Achilles Gruppe hot-knife technology
- Engineered around the Steinemann lamination tradition
Match the laminator to your offset press.
Three working-width tiers cover the most common offset and digital print formats. Use this as a starting point, then talk to our engineers for exact configuration matching your job mix.
For B2 & half-format presses
Sheet sizes up to 1080×1080 mm or 1080×1450 mm. Pairs with Heidelberg CD/SM 102, Komori L40, RMGT 9 and similar half-format offset presses.
For B1 & full-format presses
Sheet sizes up to 1300×1450 mm or 1300×1650 mm. The standard configuration for converters running Heidelberg CD/XL 105, KBA Rapida 106, Komori Lithrone GX40 and similar full-format presses.
Chain · Disc · Hot knife
Chain knife is standard for OPP/PET/Metalized films. Hot knife (Steinemann technology, E4 or L-series) is recommended for high-volume metalized PET, PVC, and BOPP at premium print quality. Disc knife is the E3 mid-tier option.
Where film lamination delivers value.
Three end-markets where SAGLIN film laminators pay back the investment fastest.
Luxury Folding Cartons
Soft-touch BOPP matte and gloss BOPP lamination on offset-printed cosmetics cartons. Required for high-perceived-value packaging in skincare, perfume, and premium beauty products.
Book Covers & Hardback Wraps
Thermal lamination on hardcover book wraps, soft-touch matte on premium magazines, and pre-glue coated film for shorter educational and trade book runs.
Brochures, Folders & Menus
Water-based gloss BOPP for corporate brochures, presentation folders, and restaurant menus. The dominant application for the MTM-E series in growing print houses.
Not sure which series fits your shop?
Tell us your sheet size, monthly volume, and current offset configuration. We respond within 24 hours with a recommendation, ROI estimate, and detailed quotation.
